Heavy-Duty Large Bore Custom Hydraulic Cylinder For 2500ton Press Machine Still mill

Image Grand : Heavy-Duty Large Bore Custom Hydraulic Cylinder For 2500ton Press Machine Still mill

Détails sur le produit:

Lieu d'origine:	Jiangsu, Chine
Nom de marque:	Flutec
Certification:	ISO9001,Dnv, SGS, BV, ABS, Gl
Numéro de modèle:	5317
Documents:	Brochure du produit PDF

Conditions de paiement et expédition:

Quantité de commande min:	1 morceau
Prix:	$ 500- $ 100000
Détails d'emballage:	Casse en bois de qualité maritime
Délai de livraison:	30 jours
Conditions de paiement:	L / ct / td / p

Contact

Description de produit détaillée

Modèle n °:	5317	Structure:	Type de piston
Matériel:	Carbone	Paquet de transport:	Casse en bois de qualité maritime
Marque déposée:	FLUTEC	Origine:	Jiangsu, Chine
Code HS:	8412210090	Capacité d'approvisionnement:	10000
Certification:	ISO9001, Dnv, SGS, BV, ABS, Gl	Pression:	Pression moyenne
Température de travail:	Température normale	Comment agir:	Double-jeu
Méthode de travail:	Voyage droit	Forme modifiée:	Type réglementé
Personnalisation:	Disponible \| Demande personnalisée	Nom:	Cylindres hydrauliques personnalisés
Mettre en évidence:	heavy-duty large bore hydraulic cylinder , custom hydraulic cylinder for press machine , 2500ton press machine hydraulic cylinder

Các xi lanh thủy lực của máy khoan được sử dụng trong nhiều giai đoạn của quá trình khoan. Các xi lanh được sử dụng để kiểm soát chuyển động dọc của máy khoan, cung cấp sức mạnh cần thiết để khoan đáy biển. Các xi lanh này phải có khả năng hoạt động chính xác và liên tục trong thời gian dài, vì bất kỳ sự gián đoạn nào trong quá trình khoan có thể gây tốn kém cực kỳ.

Ngoài chuyển động dọc, xi lanh thủy lực cũng được sử dụng để quay đầu. Cặp được sản xuất bởi các xi lanh này phải được kiểm soát chính xác để đảm bảo khoan hiệu quả. Các xi lanh thủy lực của máy khoan thường được thiết kế với hệ thống dự trữ để tăng độ tin cậy của chúng. Trong trường hợp sự cố của một xi lanh hoặc thành phần, hệ thống dự trữ có thể tiếp tiếp, cho phép khoan tiếp tục.

Product Description

Welcome to FLUTEC HYDRAULICS!

Technical Data

Cylinder Type	Mill type, Head Bolted, Base Welded
Bore Diameter	Up to 2500mm
Rod Diameter	Up to 2000mm
Stroke Length	Up to 20,000mm
Piston Rod Material	AISI 1045, AISI 4140, AISI 4340, 20MnV6, Stainless steel 2Cr13 or 1Cr17Ni2
Rod Surface Treatment	Hard chrome plated, Chrome/Nickel plated, Ceramic coated
Tube Material	Carbon steel AISI1045 or ST52.3, Alloy steel AISI4140 or 27SiMn
Tube Surface Painting	Colors according to RAL and thickness according to customer needs
Mounting Type	Clevis, Cross tube, Flange, Trunnion, Tang, Thread
Design Pressure	Up to 40Mpa
Seal Kits Type	PARKER, MERKEL, HALLITE, , TRELLEBORG
Quality Assurance	1 year
Certificate	SGS, BV, ABS ,GL, DNV etc.
Application	Mobile Equipment,Cement Mill, steel mill, Hydraulic press, etc.

Quality Assurance

Quality Process	Our quality management system is certified to ISO 9001
	Quality control standards include material records, process control plans,
	Manufacturing approvals and inspection data
Testing Standards	All products undergo 100% pressure testing 1.5 times the maximum allowable working pressure or to customer specifications
	Static and dynamic pressure testing.
	Ultraviolet leak detection technology.
	Non-destructive testing.
Fluid Cleanliness	Real-time monitoring and test phase documentation
Fluid Cleanliness	Independent sampling and oil diagnostic control

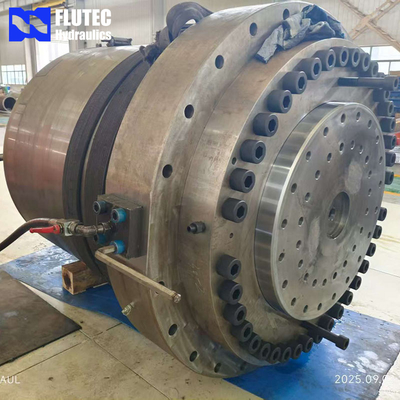

Heavy-Duty Large Bore Custom Hydraulic Cylinder For 2500ton Press Machine Still mill 2

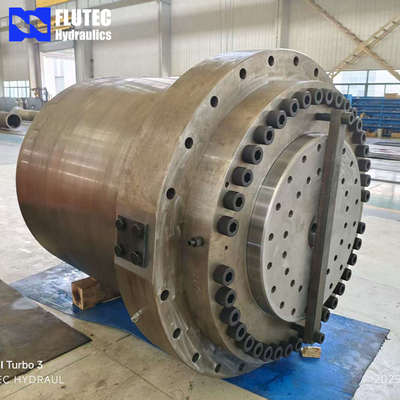

Heavy-Duty Large Bore Custom Hydraulic Cylinder For 2500ton Press Machine Still mill 3

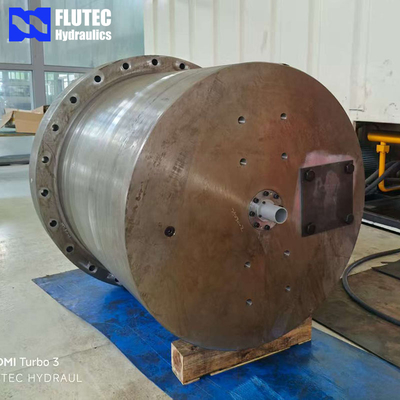

Heavy-Duty Large Bore Custom Hydraulic Cylinder For 2500ton Press Machine Still mill 4

FLUTEC HYDRAULICS is an expert at designing and manufacturing a broad range of custom engineered hydraulic cylinders and cylinder systems as well as custom engineered press bolster plates. We are proud to offer superior quality products and services for various applications including industrial, construction, mobile, agricultural, mining, steel mill, hydraulic press, etc. Our highly skilled team and modern technical facilities allow us to manufacture large bore hydraulic cylinders and long stroke hydraulic cylinders with 100% confidence and assurance.

We understand our customers need dependable quality and excellent services with affordable cost to stay ahead in today's highly competitive market. FLUTEC HYDRAULICS can meet those requirements with our robust, efficient and long life products together with prompt services.

To be mentioned, our sales team is strictly trained both in technology and language. They are full of experiences in fluid power and machinery. We are glad to personally visit our customers to work better. Heavy-Duty Large Bore Custom Hydraulic Cylinder For 2500ton Press Machine Still mill 5

Heavy-Duty Large Bore Custom Hydraulic Cylinder For 2500ton Press Machine Still mill 5

Q1: What does your company do?
A: we are a supplier of high-quality hydraulic products including Hydraulic Cylinder,Honed Tube,Chromed Rod,Machined Platen,Cylinder Parts, and other components.

Q2:Are you a manufacturer or trading company?
A: We are a manufacturer.

Q3: Are you able to make Non-standard or customized products?
A: Yes, we can.

Q4: How long is your delivery time?
A: The delivery time for customized products is 15-30 working days.But it also depends on the product requirements and quantity.

Q5: Do you provide samples?
A: No, we don't provide samples.

Q6: What are your payment terms?
A: T/T/ or L/C or D/P. If you have any questions, please feel free to contact us.

Q7: What are your After-sales services?
A: Before shipment, Each individual product will be strictly inspected on our factory QC Process System. In addition, We have a Customer Service team to respond to customers' questions within 12 hours. Being helpful in solving customers' problems is always our goal.
